UCP Agricultural Bearings
UCP Agricultural Bearings

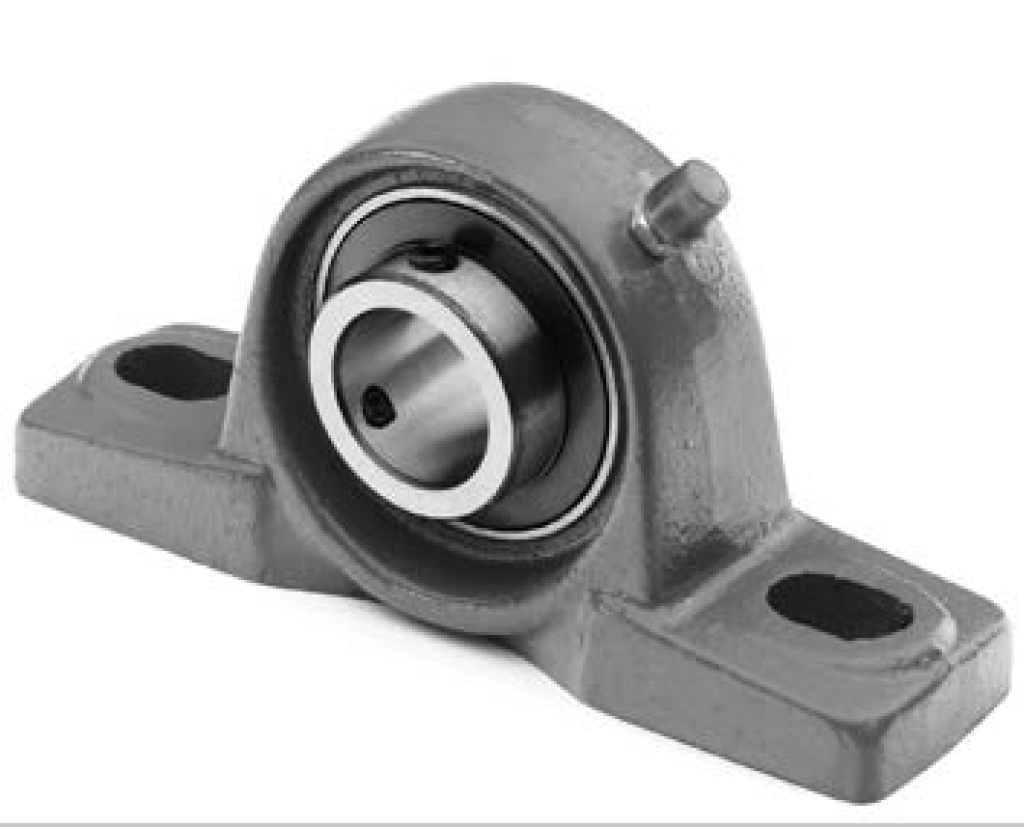

UCP pillow block bearings are essential, heavy-duty components widely used in agricultural machinery. These pre-assembled units feature a sealed outer spherical ball bearing within a sturdy housing.
Key advantages include excellent self-alignment capability to accommodate shaft misalignment, effective sealing for protection against dust and moisture, and robust construction for demanding applications.
They are commonly found in harvesting equipment, grain conveying systems, and other power transmission mechanisms across the agricultural industry, providing reliable performance and long service life in challenging operating conditions.
UCP bearings DataTable
| Unit No. | d | H(inch mm) | L(inch mm) | J(inch mm) | A(inch mm) | N(inch mm) | N1(inch mm) | H1(inch mm) | H0(inch mm) | B(inch mm) | S(inch mm) | Bolt(inch mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCP202-10S | 5/8 | 1-3/16 30.16 | 4-15/16 125.4 | 3/8 M10 | 1-1/4 32 | 15/32 12 | 5/8 16 | 3/8 M10 | 2-1/4 57 | 1.080 27.4 | 0.438 11.1 | 3/8 M10 |
| UCP201-12MM | 12mm | 1-3/16 30.16 | 5 127 | 3-3/4 95 | 1-1/2 38 | 1/2 13 | 3/4 19 | 9/16 14 | 2-7/16 62 | 1.22031 | 0.500 12.7 | 3/8 M10 |
| UCP201-8 | 1/2 | 1-3/16 30.16 | 5 127 | 3-3/4 95 | 1-1/2 38 | 1/2 13 | 3/4 19 | 9/16 14 | 2-7/16 62 | 1.22031 | 0.500 12.7 | 3/8 M10 |
| UCP202-15MM | 3/8 M10 | 1-3/16 30.16 | 5 127 | 3-3/4 95 | 1-1/2 38 | 1/2 13 | 3/4 19 | 9/16 14 | 2-7/16 62 | 1.22031 | 0.500 12.7 | 3/8 M10 |
| UCP202-10 | 5/8 | 1-3/16 30.16 | 5 127 | 3-3/4 95 | 1-1/2 38 | 1/2 13 | 3/4 19 | 9/16 14 | 2-7/16 62 | 1.22031 | 0.500 12.7 | 3/8 M10 |
| UCP203-17MM | 17mm | 1-3/16 30.16 | 5 127 | 3-3/4 95 | 1-1/2 38 | 1/2 13 | 3/4 19 | 9/16 14 | 2-7/16 62 | 1.22031 | 0.500 12.7 | 3/8 M10 |
| UCP203-11 | 11/16 | 1-3/16 30.16 | 5 127 | 3-3/4 95 | 1-1/2 38 | 1/2 13 | 3/4 19 | 9/16 14 | 2-7/16 62 | 1.22031 | 0.500 12.7 | 3/8 M10 |
| UCP204-20MM | 20mm | 1-5/16 33.34 | 5 127 | 3-3/4 95 | 1-1/2 38 | 1/2 13 | 3/4 19 | 9/16 14 | 1/2 M14 | 1.22032 | 0.500 12.7 | 3/8 M10 |
| UCP204-12 | 3/4 | 1-5/16 33.34 | 5 127 | 3-3/4 95 | 1-1/2 38 | 1/2 13 | 3/4 19 | 9/16 14 | 1/2 M14 | 1.22032 | 0.500 12.7 | 3/8 M10 |
| UCP205-25MM | 25mm | 1-7/16 36.51 | 5-1/2 140 | 4-1/8 105 | 1-1/2 38 | 1/2 13 | 3/4 19 | 19/32 15 | 2-25/32 71 | 1.343 34.1 | 0.563 14.3 | 3/8 M10 |
| UCP205-13 | 13/16 | 1-7/16 36.51 | 5-1/2 140 | 4-1/8 105 | 1-1/2 38 | 1/2 13 | 3/4 19 | 19/32 15 | 2-25/32 71 | 1.343 34.1 | 0.563 14.3 | 3/8 M10 |
| UCP205-14 | 7/8 | 1-7/16 36.51 | 5-1/2 140 | 4-1/8 105 | 1-1/2 38 | 1/2 13 | 3/4 19 | 19/32 15 | 2-25/32 71 | 1.343 34.1 | 0.563 14.3 | 3/8 M10 |
| UCP205-15 | 15/16 | 1-7/16 36.51 | 5-1/2 140 | 4-1/8 105 | 1-1/2 38 | 1/2 13 | 3/4 19 | 19/32 15 | 2-25/32 71 | 1.343 34.1 | 0.563 14.3 | 3/8 M10 |
| UCP205-16 | 1 | 1-7/16 36.51 | 5-1/2 140 | 4-1/8 105 | 1-1/2 38 | 1/2 13 | 3/4 19 | 19/32 15 | 2-25/32 71 | 1.343 34.1 | 0.563 14.3 | 3/8 M10 |
| UCP206-30MM | 30mm | 1-11/16 42.86 | 6-19/64 160 | 4-3/4 121 | 1-47/64 44 | 43/64 17 | 25/32 20 | 21/32 17 | 3-5/16 84 | 1.500 38.1 | 0.626 15.9 | 1/2 M14 |
| UCP206-17 | 1-1/16 | 1-11/16 42.86 | 6-19/64 160 | 4-3/4 121 | 1-47/64 44 | 43/64 17 | 25/32 20 | 21/32 17 | 3-5/16 84 | 1.500 38.1 | 0.626 15.9 | 1/2 M14 |
| UCP206-18 | 1-1/8 | 1-11/16 42.86 | 6-19/64 160 | 4-3/4 121 | 1-47/64 44 | 43/64 17 | 25/32 20 | 21/32 17 | 3-5/16 84 | 1.500 38.1 | 0.626 15.9 | 1/2 M14 |
| UCP206-19 | 1-3/16 | 1-11/16 42.86 | 6-19/64 160 | 4-3/4 121 | 1-47/64 44 | 43/64 17 | 25/32 20 | 21/32 17 | 3-5/16 84 | 1.500 38.1 | 0.626 15.9 | 1/2 M14 |
| UCP206-20 | 1-1/4 | 1-11/16 42.86 | 6-19/64 160 | 4-3/4 121 | 1-47/64 44 | 43/64 17 | 25/32 20 | 21/32 17 | 3-5/16 84 | 1.500 38.1 | 0.626 15.9 | 1/2 M14 |
| UCP207-35MM | 35mm | 1-7/8 47.62 | 6-9/16 167 | 5 127 | 1-7/8 48 | 43/64 17 | 25/32 20 | 45/64 18 | 3-21/32 93 | 1.689 42.9 | 0.689 17.5 | 1/2 M14 |
| UCP207-20 | 1-1/4 | 1-7/8 47.62 | 6-9/16 167 | 5 127 | 1-7/8 48 | 43/64 17 | 25/32 20 | 45/64 18 | 3-21/32 93 | 1.689 42.9 | 0.689 17.5 | 1/2 M14 |
| UCP207-21 | 1-5/16 | 1-7/8 47.62 | 6-9/16 167 | 5 127 | 1-7/8 48 | 43/64 17 | 25/32 20 | 45/64 18 | 3-21/32 93 | 1.689 42.9 | 0.689 17.5 | 1/2 M14 |
| UCP207-22 | 1-3/8 | 1-7/8 47.62 | 6-9/16 167 | 5 127 | 1-7/8 48 | 43/64 17 | 25/32 20 | 45/64 18 | 3-21/32 93 | 1.689 42.9 | 0.689 17.5 | 1/2 M14 |
| UCP207-23 | 1/2 M14 | 1-7/8 47.62 | 6-9/16 167 | 5 127 | 1-7/8 48 | 43/64 17 | 25/32 20 | 45/64 18 | 3-21/32 93 | 1.689 42.9 | 0.689 17.5 | 1/2 M14 |
| UCP208-40MM | 40mm | 1-15/16 49.21 | 7-1/4 184 | 5-13/32 137 | 2-1/8 54 | 43/64 17 | 25/32 20 | 45/64 18 | 3-15/16 100 | 1.689 42.9 | 0.74819 | 1/2 M14 |
| UCP208-24 | 1-1/2 | 1-15/16 49.21 | 7-1/4 184 | 5-13/32 137 | 2-1/8 54 | 43/64 17 | 25/32 20 | 45/64 18 | 3-15/16 100 | 1.689 42.9 | 0.74819 | 1/2 M14 |
| UCP208-25 | 1-9/16 | 1-15/16 49.21 | 7-1/4 184 | 5-13/32 137 | 2-1/8 54 | 43/64 17 | 25/32 20 | 45/64 18 | 3-15/16 100 | 1.689 42.9 | 0.74819 | 1/2 M14 |
| UCP209-45MM | 45mm | 2-1/8 53.975 | 7-15/32 190 | 5-3/4 146 | 2-1/8 54 | 43/64 17 | 25/32 20 | 25/32 20 | 4-11/64 106 | 1.937 49.2 | 0.74819 | 1/2 M14 |
| UCP209-26 | 1-5/8 | 2-1/8 53.975 | 7-15/32 190 | 5-3/4 146 | 2-1/8 54 | 43/64 17 | 25/32 20 | 25/32 20 | 4-11/64 106 | 1.937 49.2 | 0.74819 | 1/2 M14 |
| UCP209-27 | 1-11/16 | 2-1/8 53.975 | 7-15/32 190 | 5-3/4 146 | 2-1/8 54 | 43/64 17 | 25/32 20 | 25/32 20 | 4-11/64 106 | 1.937 49.2 | 0.74819 | 1/2 M14 |
| UCP209-28 | 1-3/4 | 2-1/8 53.975 | 7-15/32 190 | 5-3/4 146 | 2-1/8 54 | 43/64 17 | 25/32 20 | 25/32 20 | 4-11/64 106 | 1.937 49.2 | 0.74819 | 1/2 M14 |
